most important question is how the M1 is still alive playing Quake? my 3.5G that i had used for like 3+ years died pretty fast when i started playing Quake, LG was cutting out mid stream

My M1 was cutting out after cca 2 years of use, that is because the plastic was to soft, and it molded itself over the actual button inside the mouse, so i glued a very thin piece of metal under it, worked like a beauty ever since and DAT CRISP click .. omg

GG you wasted a perfectly good mouse :)

Cutting out mid-stream is pretty normal once you reach out a certain age...

find a turtle... hollow him/her out....

new mouse shell :D



saw a guy who turned his dead cat into a quad-copter... so why not?

oh, i got plenty of these. :D

i bet you do ;P

i always trew them away after ripping them for the PCB (those damn screws lol)

why is you all throwing away shitz dat iznt broken!

look at this badboy: http://i.imgur.com/Fl50KwD.jpg

:D

:droooool:

so you want it? :P
I also have the button PCB in the same good condition + scroll wheel.
You could refresh your DA to an almost new condition again. :)

http://i.imgur.com/siuq25D.jpg

15€ + 8,79€ to slovenia

edit: hmm wait, you wrote that this is your 2006 DA, but then it should have a red scrollwheel encoder, instead of the turquoise one it shows on your pic. :S
My shell and button-PCB is not compatible with your mouse then it seems. :(

thanks man! Well the guy below offered the case relatively free, but if that doesn't go thru we can strike a deal. ...but i would only need the shell.

Thanks again.

ye, he offered the DA BE shell, which seems to be compatible with your DA.
But if your DA is really from 2006(dunno if you remember that correctly :P), then his shell wouldn't be compatible, as there are two versions of the DA 3G, which don't allow for swapping parts between them. :-?

hmm i thought first DA and later models up to 3.5G are compatible at least the top cover of the shell, that actually makes the button. Since the measurements are the same.

And i do not exactly know, if it is the 2006 or the 2007 model since i peeled the model sticker off. :) It was unreadable anyway.

the 2nd version of the DA 3G(released somewhere around the end of 2008), is compatible with the DA 3.5G / BE.

I guess you have to take it apart to be sure which version you got.
Here you can see the differences between DA 3G version 1(red scroll encoder) and 2(turquoise scroll encoder): http://imgur.com/a/olrhX (not sorted properly :P)

ye but the thing is all have the same upper plate where the logo is ... so basicly, i am only gona change that one part -that should be universal to all DAs as i compared the images of the models. The basic shell i am gonna keep as is.

Look pictures below.

Edit: i saw the link you gave and i see where the upper plate goes to the upper shell, the holes seems to be mostly there, where they should be, but one version didnt had the side flaps/pins or i missed it.

hmm, i will try that if the button part is interchangable between the diff. versions.

I am 99% sure the plate is interchangeable.

well no: http://i.imgur.com/IZRGGar.jpg

and it looks like you have a 2nd version of the DA according to the pic you posted below.

i can send you one kinda crappy button part for free aswell, using the normal post for about 3.50€. :)

aha i see, cool man kudos for helping me understand the different parts.

Check out esr msg for address.

material fatigue, highly doubt it lol

dude i swear at first i though after all this years "cutting out" came back, but then i saw that button was actually bend and like an idiot i was pressing harder so i can overcome "cutting-out" effect, ofc after that it just "cracked" softly/easly.

Let's work this out =)

4 clicks / second * 60 seconds * 60 minutes * 4 hours a day * 340 days a year * 2 years = 40,000,000 clicks in 2 years = 4 x 10^7

So we've gone off the end of the graph a little bit :(

Clicking force = 1N
Shear force:
---
let x = axis parallel to clicker width
let y = vertical axis
---
Second Moment of Area:
I = (b * d^3 )/ 12
b: clicker width
d: clicker depth
I = (30x10^-3 * (2x10^-3)^3)/12 = 2x10^-11 m^4

General Stress Equation:(cantilever beam)
---
stress = (Mx * y) / Ix
maximum tensile stress at clicker surface where y (distance from Neutral Axis = 1mm)
---
Mx = Click Force * distance
=1N * 60 mm = 0.06

Shear Stress(max) = [ 0.06 * 1 x 10 ^-3 ] / 2x10^-11
=3MPa


Disclaimer: I was really bad at this sort of stuff so I might have just failed hard

---

So we're looking at the point on the graph where sigma (stress along the clicker) is 3MPa and where cycles to failure is around 4x10^7

Looks bang on for PE, PTFE and dry Nylon: does anyone know what polymer the DA is made from?

dat numbers! lol kudos.... but i own this DA since 2007 /2008 so lets say for 8 years. So by your formula that would be 156,672,000 clicks.

Anyways I know its material fatique, because the feeling when the m1 button broke was the same when you do multiple bends on a plastic material and how it feels when the material becomes gradually soft.

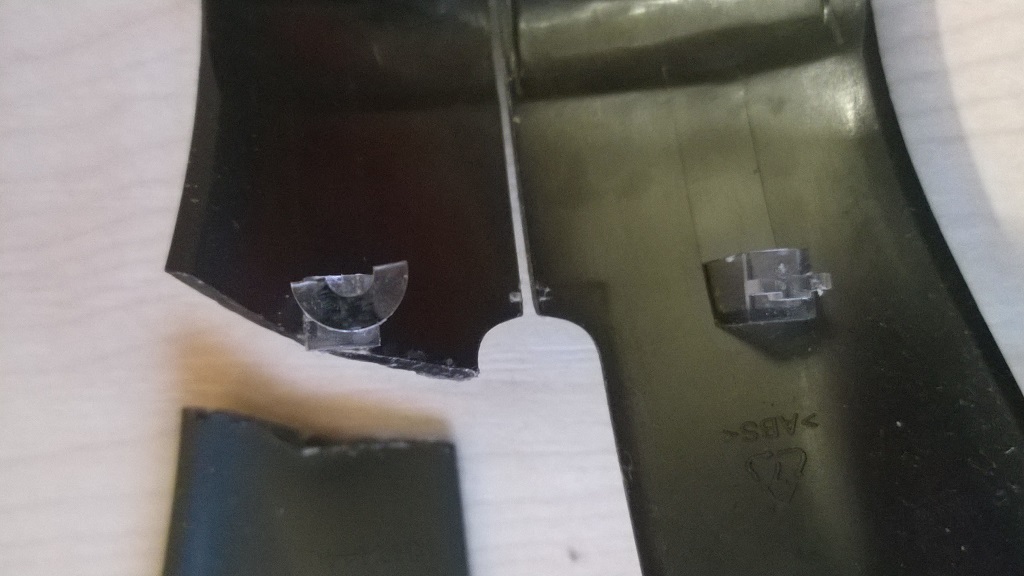

+ if you look at mouse you see it broke off exactly where button looses structural support of the plastic that goes on the actual mouse button inside the mouse.

Yeah I was going to add that where the casing hits the button will add a stress concentration. Also when you added the metal because it has a different stiffness that will add a large stress concentration (like why armour plating tanks and destroyers is a bad idea)

Strictly speaking though fatigue is failure at a stress below the yield point, i.e. you aren't permanently deforming the mouse shell with each click - it's not the same as when you bend plastic back and forth.

Quite interesting though! Maybe razer didn't think of fatigue too much ;)

heh they prolly made a 3 year deal working mouse, then it start to cut out.... so basically after that, people start trowing away their mice and re-buy. So basically what are the odds of some1 having a mouse for 8 years, goddamn capitalistic consumerism. SPEND SPEND SPEND!

my friends grandfather has a fridge that still works flawlessly after goddamn 40 years. 40 YEARS!!!! -a time where building something meant it should work, just work.

Building materials and with that building quality is going down ever since america broke of England. Ye i said it ... capitalism, democracy and free market my ass. 1% good quality, 99% shit.

Not saying democracy started then .... that would be giving amurica to much credit :) (that is just to make some1 to blame) :)

Yeah too right man! Agreed with everything you put.

I guess people aren't interested in investing in a long term product. The electronics would probably start getting more expensive too in fairness. But no possibility of buying spares or repairs...

I study engineering and our lecturer was talking about how products are designed to be unrepairable/tamper proof so people have to buy it again. Dishonest and unsustainable business model imo

I have an empty da black edition shell you can have for free. Postage for 3-5 day delivery to Slovenia is 8 Euros.

dude! ... that would be awesome! I can easly give you 10€ to round things up.

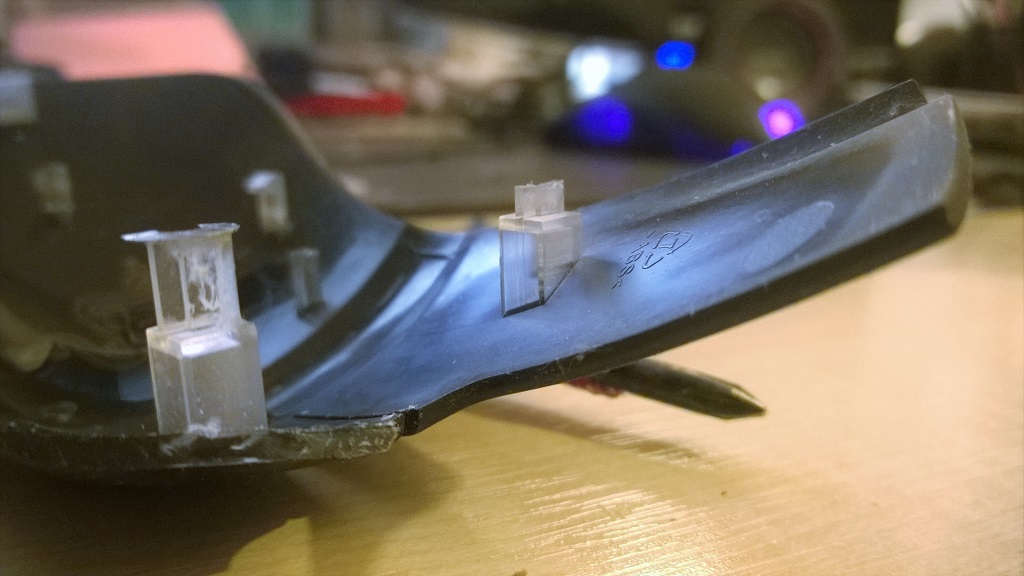

Some more pictures, of the metal pic glued onto the plastis to eliminate cutout.

Thunda you da man ... i got the plate ... everything is ok, i had to break of two little unimportans plastic pins for my model. and it workz beautifully .... it was an easy snap on.

But the clicking is poor so i am gona glue on that metal shim, for extra crisp click!

:D

Drilled holes in mine to make it lighter, sorry.
